Spherical aberration 2
Spherical aberration. A perfect lens (top) focuses all incoming rays to a point on the optic axis. A real lens with spherical surfaces (bottom) suffers from spherical aberration: it focuses rays more tightly if they enter it far from the optic axis than if they enter closer to the axis. It therefore does not produce a perfect focal point. (Drawing is exaggerated.)
Dr Joe KiffAdded by Dr Joe Kiff

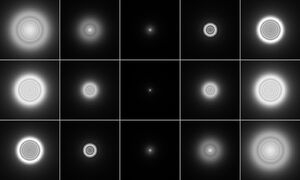

Spherical-aberration-disk
A point source as imaged by a system with (top) negative, (center) zero, and (bottom) positive spherical aberration. Images to the left are defocused toward the inside, images on the right toward the outside.
Dr Joe KiffAdded by Dr Joe Kiff
Spherical-aberration-slice
Longitudinal sections through a focused beam with (top) negative, (center) zero, and (bottom) positive spherical aberration. The lens is to the left.
Dr Joe KiffAdded by Dr Joe Kiff

In optics, spherical aberration is an image imperfection that occurs due to the increased refraction of light rays that occurs when rays strike a lens or a reflection of light rays that occurs when rays strike a mirror near its edge, in comparison with those that strike nearer the center. It is often considered to be an imperfection of telescopes and other instruments which makes their focusing less than ideal due to the spherical shape of lenses and mirrors. This is an important effect, as spherical shapes are much easier to produce than aspherical and so most lenses have spherical shapes.

The effect is proportional to the fourth power of the diameter and inversely proportional to the third power of the focal length, so it is much more pronounced at short focal ratios, i.e., "fast" lenses.

For small telescopes using spherical mirrors with focal ratios shorter than f/10, light from a distant point source (such as a star) is not all focused at the same point. Particularly, light striking the inner part of the mirror focuses farther from the mirror than light striking the outer part. As a result the image cannot be focused as sharply as if the aberration were not present. Because of spherical aberration, telescopes shorter than f/10 are usually made with non-spherical mirrors or with correcting lenses.

In lens systems, the effect can be minimized using special combinations of convex and concave lenses, as well as using aspheric lenses.

For simple designs one can sometimes calculate parameters that minimize spherical aberration. For example, in a design consisting of a single lens with spherical surfaces and a given object distance o, image distance i, and refractive index n, one can minimize spherical aberration by adjusting the radii of curvature R_1 and R_2 of the front and back surfaces of the lens such that \frac{R_1+R_2}{R_1-R_2}=\frac{2 \left( n^2-1 \right)}{n+2}\left( \frac{i+o}{i-o}\right) .
