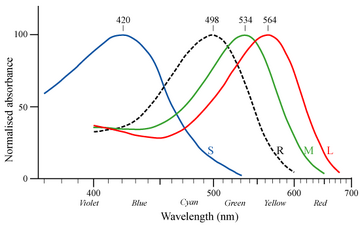

Normalised absoption spectra of human rod (R) and cone (S,M,L) cells. Note that the wavelength scale is not represented linearly.

Rod cells, or rods, are photoreceptor cells in the retina of the eye that can function in less intense light than can the other type of photoreceptor, cone cells. Since they are more light-sensitive, rods are responsible for night vision. Named for their cylindrical shape, rods are concentrated at the outer edges of the retina (see peripheral vision). There are about 100 million rod cells in the human retina.

A rod cell is sensitive enough to respond to a single photon of light. Since rods require less light to function than cones, they are therefore the primary source of visual information at night. Cone cells, on the other hand, require tens to hundreds of photons to become activated. Additionally, multiple rod cells converge on a single interneuron, collecting and amplifying the signals. This convergence comes at a cost to visual acuity, however, since the pooled information from multiple cells is less distinct than if the visual system received information from each rod cell individually. The convergence of rod cells also tends to make peripheral vision very sensitive to movement.

Rod cells also respond more slowly to light than do cones, so stimuli they receive are added over about a hundred milliseconds. While this makes rods more sensitive to smaller amounts of light, it also means that their ability to sense temporal changes (such as quickly changing images) is less accurate than that of cones (Kandel et al., 2000).

Experiments by George Wald and others showed that rods are more sensitive to the blue area of the spectrum, and are completely insensitive to wavelengths above about 640 nm (red). This fact is responsible for the Purkinje effect, in which blue colors appear more intense relative to reds in darker light, when rods take over as the cells responsible for vision.

Because they have only one type of light sensitive pigment (rather than the three types that human cone cells have), rods have little, if any, role in color vision.

Like cones, rod cells have a synaptic terminal, an inner segment, and an outer segment. The synaptic terminal forms a synapse with another neuron, for example a bipolar cell. The inner and outer segments are connected by a cilium (Kandel et al., 2000). The inner segment contains organelles and the cell's nucleus, while the outer segment, which is pointed toward the front of the eye, contains the light-absorbing materials (Kandel et al., 2000).

Response to light

Activation of a photoreceptor cell is actually a hyperpolarization; when they are not being stimulated, rods and cones depolarize and release a neurotransmitter spontaneously, and activation of photopigments by light sends a signal by preventing this. Depolarization occurs due to the fact that in the dark, cells have a relatively high concentration of cyclic guanosine 3'-5' monophosphate (cGMP), which opens ion channels (largely sodium channels, though Calcium can enter through these channels as well). The positive charges of the ions that enter the cell down its electrochemical gradient change the cell's membrane potential, cause depolarization, and lead to the release of the neurotransmitter glutamate. Glutamate can depolarize some neurons and hyperpolarize others, allowing photoreceptors to interact in an antagonistic manner.

When light hits photoreceptive pigments within the photoreceptor cell, the pigment changes shape. This causes it to activate a regulatory protein called transducin, which leads to the activation of cGMP phosphodiesterase, which breaks cGMP down into 5'-GMP. Reduction in cGMP allows the ion channels to close, preventing the influx of positive ions, hyperpolarizing the cell, and stopping the release of neurotransmitters (Kandel et al., 2000).

Activation of a single molecule of rhodopsin, the photosensitive pigment in rods, can lead to a large reaction in the cell because the signal is amplified. One activated, rhodopsin can activate hundreds of transducin molecules, each of which in turn activate a phosphodiesterase molecule, which can break down over a thousand cGMP molecules per second (Kandel et al., 2000). Thus rods can have a large response to a small amount of light.


Comparison of rod and cone cells, from Kandel et al. (2000).

Rods Cones
used for night vision used for day vision
very light sensitive; sensitive to scattered light not very light sensitive; sensitive only to direct light
loss causes night blindness loss causes legal blindness
low visual acuity high visual acuity; better spacial resolution
not present in fovea concentrated in fovea
slow response, to light, stimuli added over time fast response to light, can perceive more rapid changes in stimuli
have more pigment than cones, so can detect less light have less pigment than rods, require more light to detect images
stacks of membrane-enclosed disks are unattached to cell membrane disks are attached to outer membrane
20 times more rods than cones in the retina
one type of photosensitive pigment three types of photosensitive pigment in humans
confer achromatic vision confer color vision


  • Kandel E.R., Schwartz, J.H., Jessell, T.M. (2000). Principles of Neural Science, 4th ed., pp.507-513. McGraw-Hill, New York.
