There are six Orbital Muscles; Four of the muscles control the movement of the eye going up and down and side to side. Two of the muscles control the eye to move while the head moves. For instance look in the mirror sometime, you can see your eyes looking right at it. Then stare at the mirror while moving your head side to side. You can see your eyes move but you still are looking at the mirror. That is what the other two muscles do.

Muscle Innervation Primary function Secondary function Tertiary function
Levator palpebrae superioris Oculomotor nerve Elevation of the superior (upper) eyelid . .
Superior rectus Oculomotor nerve Elevation Intorsion Adduction
Inferior rectus Oculomotor nerve Depression Extorsion Adduction
Lateral rectus Abducens nerve Abduction . .
Medial rectus Oculomotor nerve Adduction . .
Superior oblique Trochlear nerve Intorsion Depression Abduction
Inferior oblique Oculomotor nerve Extorsion Elevation Abduction

A good mnemonic to remember which muscles are innervated by what nerve is to paraphrase it as a molecular equation: LR6SO4R3.
Lateral Rectus - Cranial Nerve VI,
Superior Oblique - Cranial Nerve IV,
the Rest of the muscles - Cranial Nerve III.

Another way to remember which nerves innervate which muscles is to understand the meaning behind all of the Latin words. The fourth cranial nerve, the trochlear, is so named because the muscle it innervates, the superior oblique, runs through a little fascial pulley that changes its direction of pull. This pulley exists in the superiomedial corner of each orbit, and "trochl-" is Latin for "pulley." The sixth cranial nerve, the abducens, is so named because it controls the lateral rectus, which abducts the eye (rotates it laterally) upon contraction. All of the other muscles are controlled by the third cranial nerve, the oculomotor, which is so named because it is in charge of the movement (motor) of the eye (oculo-).

PurposeEdit

The motor apparatus, precisely and rapidly, controls eye movement for exact alignment with the fovea, since this is the area that deals with sharp vision. This swift and accurate motion is evident in reading. When keeping the gaze on a small object, like a golf ball, the eyes must compensate for the small movements of the head to keep the object on the fovea. The eyes can be controlled by voluntary means, as one can deliberately change focus. However, most eye movement is done without awareness. This is evident when viewing moving objects or head or body movement. Studying the movements of the eyes depend on reflexes brought on by factors in the environment or the individual, keeping in mind the voluntary control.

File:MRI of human eye.jpg

The extraocular muscles are the six muscles that control the movements of the (human) eye. The actions of the extraocular muscles depend on the position of the eye at the time of muscle contraction.

List of musclesEdit

Muscle Innervation Origin Insertion Primary function Secondary function Tertiary function
Superior rectus Superior branch of oculomotor nerve Annulus of Zinn eye (anterior, superior surface) Elevation Intorsion Adduction
Inferior rectus Inferior branch of oculomotor nerve Annulus of Zinn eye (anterior, inferior surface) Depression Extorsion Adduction
Lateral rectus Abducens nerve Annulus of Zinn eye (anterior, lateral surface) Abduction
Medial rectus Inferior branch of oculomotor nerve Annulus of Zinn eye (anterior, medial surface) Adduction
Superior oblique Trochlear nerve Annulus of Zinn eye (posterior, superior, lateral surface) Intorsion Depression Abduction
Inferior oblique Inferior branch of oculomotor nerve Maxillary bone eye (posterior, inferior, lateral surface) Extorsion Elevation Abduction

InnervationEdit

The nuclei or bodies of these nerves are found in the brain stem. The nuclei of the abducens and oculomotor nerves are connected. This is important in coordinating motion of the lateral rectus in one eye and the medial action on the other. Two antagonistic muscles, like the lateral and medial recti. Contraction of one leads to inhibition of the other. Muscles shows small degrees of activity even when resting, keeping the muscles taut. This "tonic" activity is brought on by discharges of the motor nerve to the muscle.

ActionsEdit

Note that intorsion and extorsion are not included in the following table; their actions are accounted for via summation of other actions.
Medial (towards nose) Lateral (towards temple)
Elevation, adduction:
Superior rectus
Elevation, abduction:
inferior oblique
Adduction:
Medial rectus
Abduction:
Lateral rectus
Depression, adduction:
Inferior rectus
Depression, abduction:
Superior oblique

In an eye examination, the inability of the patient to move the eye in the specified direction can indicate a problem with the associated muscle, and the nerve associated with that muscle.

Coordination of Movement Between Both EyesEdit

Intermediate directions are controlled by the simultaneous actions of multiple muscles. When one shifts the gaze horizontally, one eye will move laterally (toward the side) and the other will move medially (toward the midline). This may be neurally coordinated by the central nervous system, to move together and almost involuntarily. This is a key factor in the study of squint, namely, the inability of the eyes to be directed to one point.

There are two main kinds of movement: conjugate movement (the eyes move in the same direction) and disjunctive (opposite directions). The former is typical when shifting gaze right or left, the latter is convergence of the two eyes on a near object. Disjunction can be performed voluntarily, but is usually triggered by the nearness of the target object. A "see-saw" movement, namely, one eye looks up and the other down, is possible, but not voluntarily; this effect is brought on by putting a prism in front of one eye, and the relevant image is apparently displaced. However, to avoid double vision from noncorrsponding points from, the eye with the prism must move up or down, following the image passing through the prism. Likewise torsion (rolling) on the anteroposterior axis (from the front to the back) can occur naturally, as when one tips his head to one shoulder, the torsion, in the opposite direction, keeps the image vertical.

The muscles show little inertia, so a shutdown of one muscle is not due to checking of the antagonist, so the motion is not ballistic.

PathsEdit

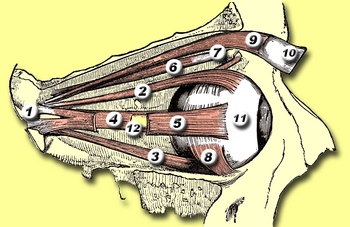

Eyemuscles

View of right eye from the right:
1 = Annulus tendineus communis
2 = Superior rectus muscle
3 = Inferior rectus muscle
4 = Medial rectus muscle
5 = Lateral rectus muscle
6 = Superior oblique muscle
7 = Trochlea of superior oblique
8 = Inferior oblique muscle
9 = Levator palpebrae superioris muscle
10 = Eyelid
11 = Eyeball
12 = Optic nerve

Five with paths from annulus of zinnEdit

Five of the extraocular muscles have their origin in the back of the orbit in a fibrous ring called the annulus of Zinn.

Four of these then course forward through the orbit and insert onto the globe on its anterior half (i.e., in front of the eye's equator). These muscles are named after their straight paths, and are called the four rectus muscles, or four recti.

  • superior rectus - inserts on the globe at 2
  • inferior rectus - inserts on the globe at 3
  • medial rectus - inserts on the globe at 4
  • lateral rectus - inserts on the globe at 5

(Note that lateral and medial are relative to the subject, with lateral toward the side and medial toward the midline, thus the medial rectus is the muscle closest to the nose).

Two with more complex pathsEdit

The other two extraocular muscles follow more complicated paths.

  • The superior oblique muscle originates at the back of the orbit (a little closer to the medial rectus) and courses forward to a rigid pulley, called the trochlea, on the upper, nasal wall of the orbit. The muscle passes through the pulley, turning sharply across the orbit, and inserts on the lateral, posterior part of the globe. Thus, the superior oblique goes backward for the last part of its path, and because it goes over the top of the eye, it pulls it downward and laterally [1].
  • The last muscle is the inferior oblique, which originates at the lower front of the nasal orbital wall, and passes under the LR to insert on the lateral, posterior part of the globe. Thus, the inferior oblique pulls the eye upward and laterally .[1][2][3]

RollingEdit

The superior and inferior recti are not strictly vertical. The oblique pull of the obliques causes a rolling opposite each other. Although bearing mutual strict antagonism, the superior and inferior rectus team up with the inferior and superior oblique to move the eye up or down, respectively. The extent of rolling in the recti is less than the oblique, and opposite from it.

MnemonicEdit

A good mnemonic to remember which muscles are innervated by what nerve is to paraphrase it as a molecular equation: LR6SO4R3.[4] or (LR6SO4)3 i.e. "LR 6 SO 4 Whole 3."

  • Lateral Rectus - Cranial Nerve VI
  • Superior Oblique - Cranial Nerve IV
  • the Rest of the muscles - Cranial Nerve III.

Another way to remember which nerves innervate which muscles is to understand the meaning behind all of the Latin words.

  • The fourth cranial nerve, the trochlear, is so named because the muscle it innervates, the superior oblique, runs through a little fascial pulley that changes its direction of pull (the trochlea of superior oblique). This pulley exists in the superiomedial corner of each orbit, and "trochl-" is Latin for "pulley."
  • The sixth cranial nerve, the abducens, is so named because it controls the lateral rectus, which abducts the eye (rotates it laterally) upon contraction.
  • The third cranial nerve, the oculomotor, is so named because it is in charge of the movement (motor) of the eye (oculo-). It controls all of the other muscles.
